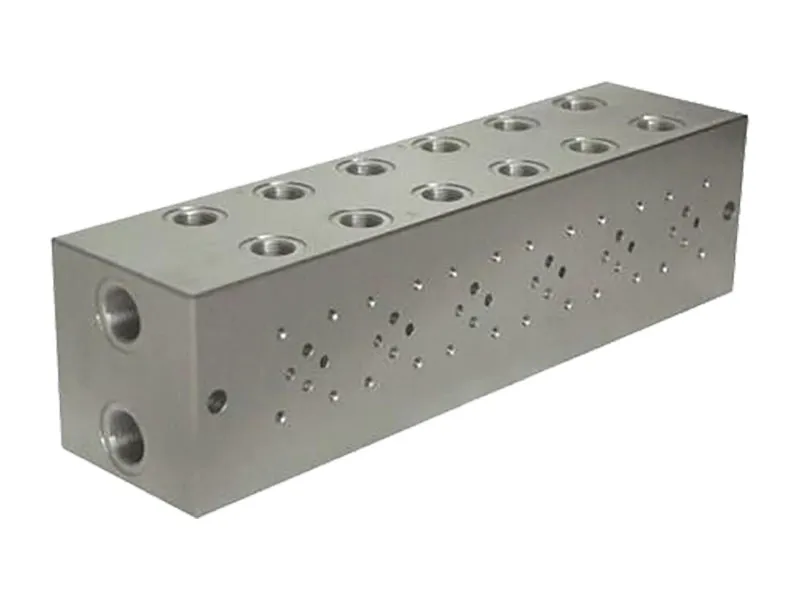

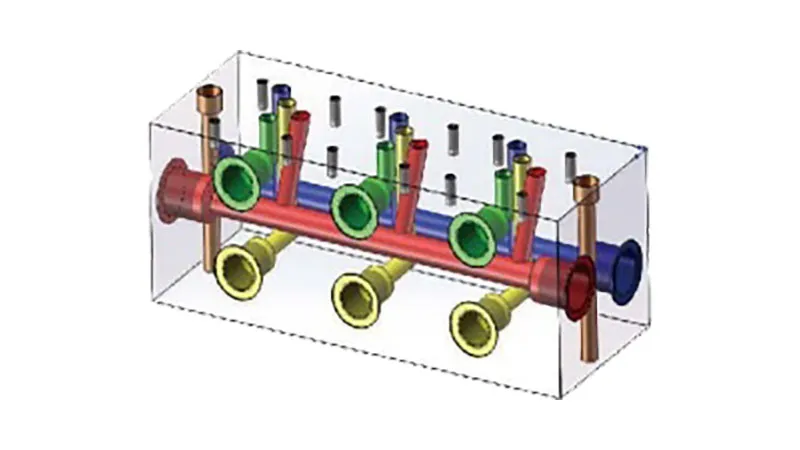

The NG10 standard flow parallel circuit manifold is a hydraulic manifold block designed for high-performance applications. Constructed from advanced technology and high-quality materials like aluminum and ductile iron, it offers durability and reliability. Aluminum manifolds are typically used under working pressures of up to 20 MPa, while iron manifolds can withstand pressures up to 35 MPa. The NG10 standard flow parallel circuit manifold's ports are versatile, available in BSP, NPT, SAE, and METRIC thread options, catering to a wide range of hydraulic system requirements.

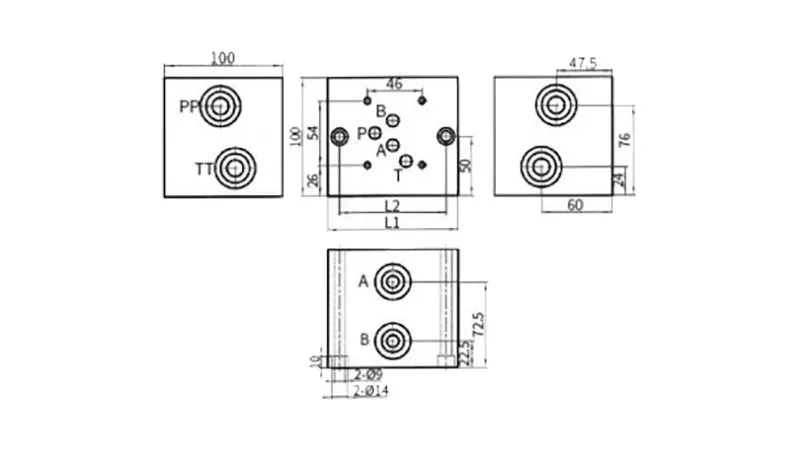

Model | L1 (mm) | L2 (mm) | P & T | A & B | Net Weight of Steel Manifold (kg) | Net Weight of Aluminum Manifold (kg) |
Ng10-1 | 110 | 90 | G3/4' | G1/2' | 7.7 | 2.67 |
Ng10-2 | 185 | 165 | G3/4' | G1/2' | 13.13 | 4.56 |
Ng10-3 | 260 | 240 | G3/4' | G1/2' | 18.56 | 6.45 |
Ng10-4 | 335 | 315 | G3/4' | G1/2' | 23.99 | 8.34 |
Ng10-5 | 410 | 390 | G3/4' | G1/2' | 29.42 | 10.22 |
Ng10-6 | 485 | 465 | G3/4' | G1/2' | 34.85 | 12.11 |
Ng10-7 | 560 | 540 | G3/4' | G1/2' | 40.28 | 14 |
Ng10-8 | 635 | 615 | G3/4' | G1/2' | 45.71 | 15.88 |
Ng10-9 | 710 | 690 | G3/4' | G1/2' | 51.14 | 17.77 |
Ng10-10 | 785 | 765 | G3/4' | G1/2' | 56.57 | 19.66 |
The NG6 standard flow parallel circuit manifold is a key component in hydraulic systems, specially designed to accommodate multiple valves on a single manifold. They are capable of assembling several valves together, utilizing a common pressure and tank connection; and are available in two models: an aluminum version capable of handling up to 3000 psi and a steel model designed for pressures up to 5000 psi. In parallel circuit systems, the flow is evenly distributed among all functions, allowing each valve to operate independently, which significantly enhances the hydraulic system’s flexibility and efficiency.
